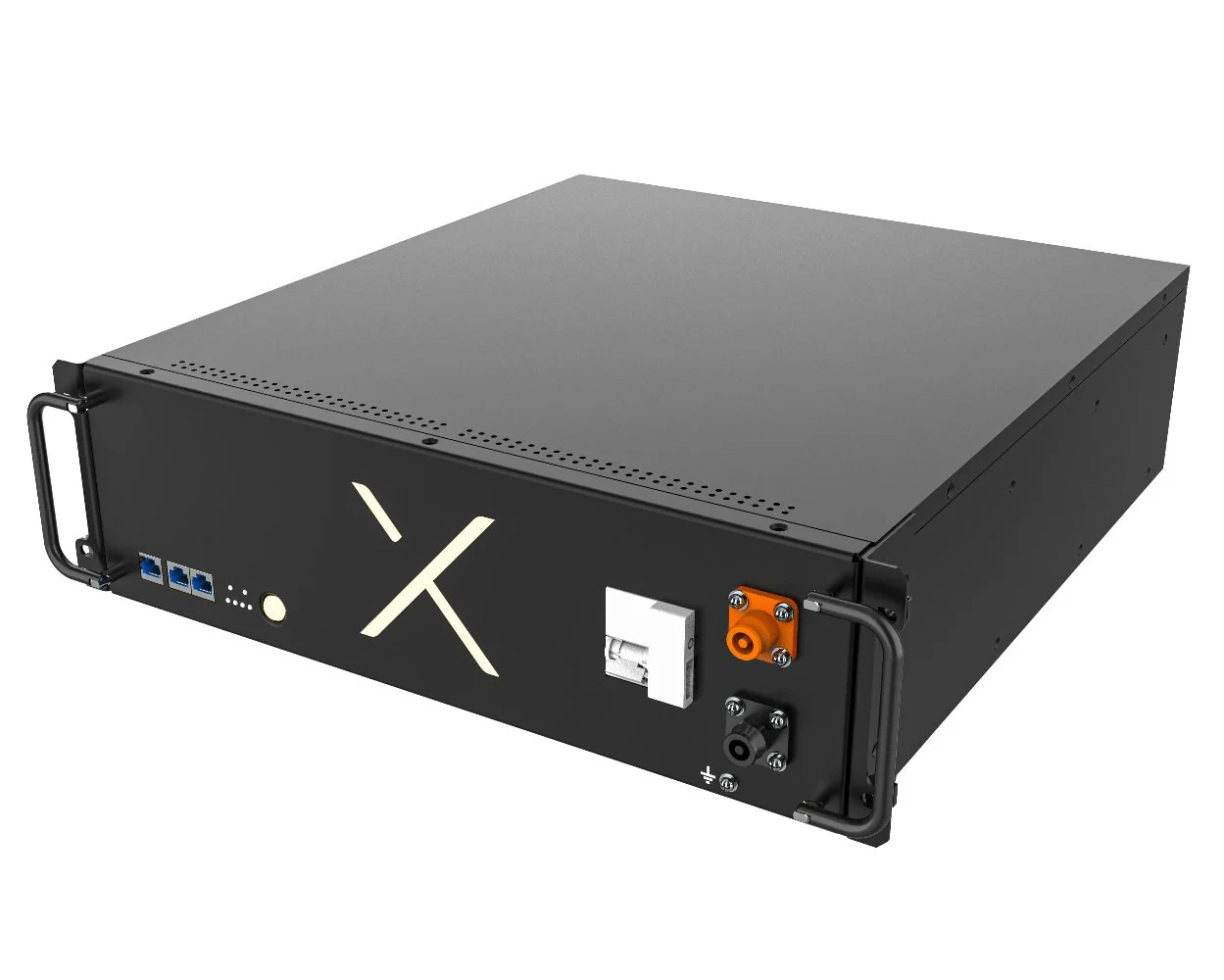

XESS ION 5120 Lithium Battery Storage with Scalable Design and Active Battery Management

The XESS ION 5120 is a premium lithium battery storage system engineered for Australian conditions, combining advanced Active Battery Management with high-grade LiFePO4 prismatic cells.

Select your quantity of XESS ION battery modules, along with your choice of cabinet from the drop down menu.

Please Note: These are heavy items with shipping on a pallet to nearest freight depot or unloading facilities required, otherwise tailgate fees may apply. Freight is calculated by location and components required; please Contact us to discuss the most cost effective, reliable shipping option to your address.

Designed for durability and future scalability, it supports plug-and-play expansion and features an industry-first automatic fallback to self-management when communication with the XESS ONE is lost, delivering robust, intelligent energy storage for a wide range of applications.

XESS ONE Standalone Energy System is Available HERE

XESS ION Features:

Unmatched Reliability: Experience uninterrupted power with the industry-first Automatic Fallback to Self-Management, which keeps your system running smoothly, even if communication is lost with (XESS ONE) inverters.

Modern, Sleek Storage: Expandable and securely housed in the specially designed XESS ION 6 or 10 module cabinets.

Effortless Scalability: Whether you need a small or large setup, the XESS ION 5120 offers easy expansion with up to 64 batteries connected in parallel, thanks to its plug-and-play design

Hassle-Free Installation: Save time with quick, plug-and-play connections, and enjoy the convenience of hot-swappable modules that can be replaced without any system downtime or interruptions.

Compatibility: Operates with both managed and self managed inverter systems.

Remote Monitoring: Stay in control from anywhere with XESS LINK, which allows you to monitor performance and manage your system remotely.

Built for Tough Environments: Designed for durability, the XESS ION 5120 performs reliably in a wide range of temperatures, making it ideal for challenging climates here in Australia.

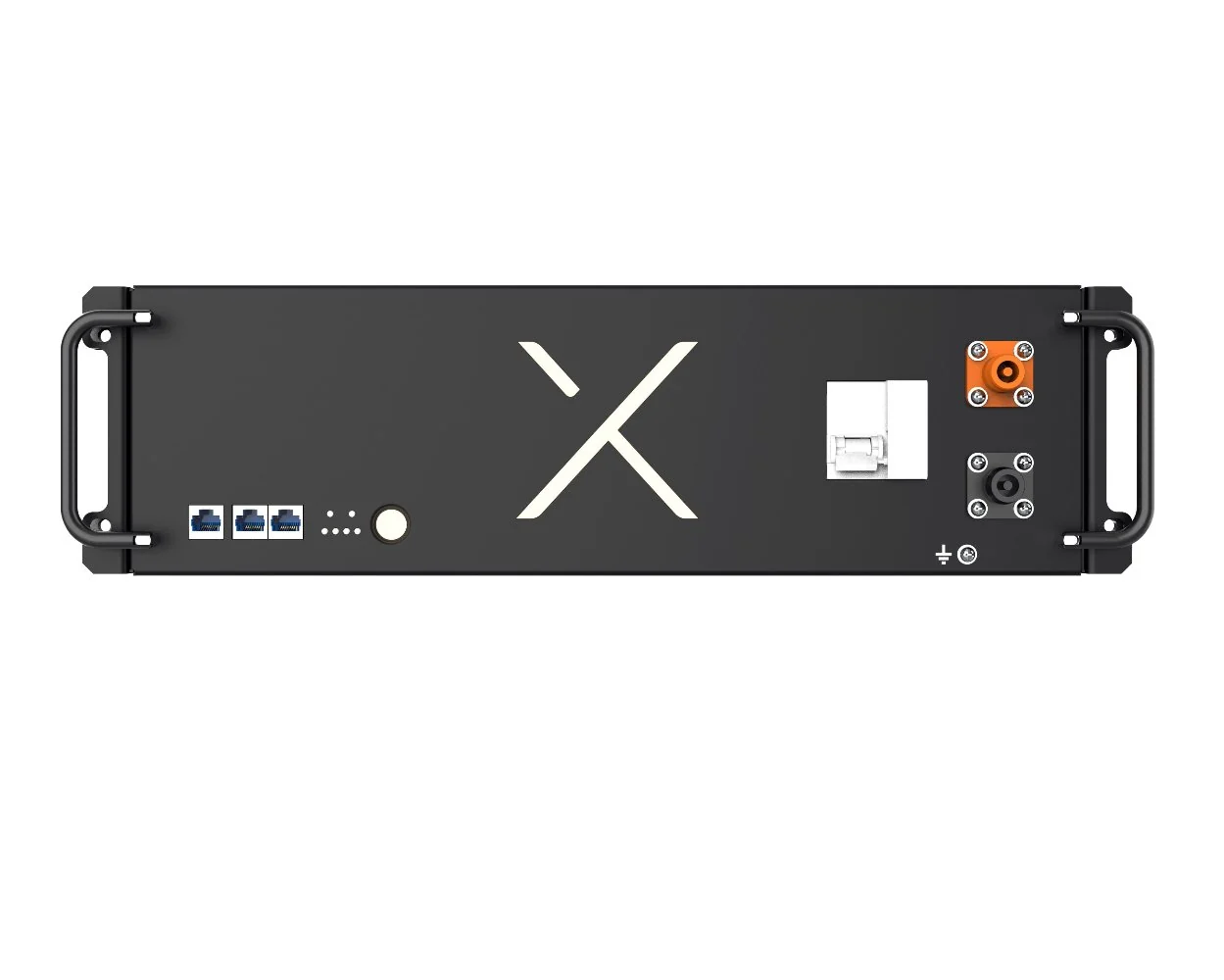

Module Quick Specs:

• Nominal Voltage: 51.2 V DC
• Capacity: 5.12 kWh / 100 Ah
• Max Discharge Power: 5.12 kW (Continuous), 10.24 kW (Peak, 5s)
• Scalability: Up to 64 Batteries in Parallel
• Dimensions: 440 x 134 x 480 mm
• Weight: 44 kg
• Efficiency: > 96%
• Chemistry: LiFePO4 (LFP)
• Operating Temp Range: Charge: -10°C to 50°C / Discharge: -20°C to 50°C (Managed)
• Warranty: Up to 10 Years (Conditions Apply)

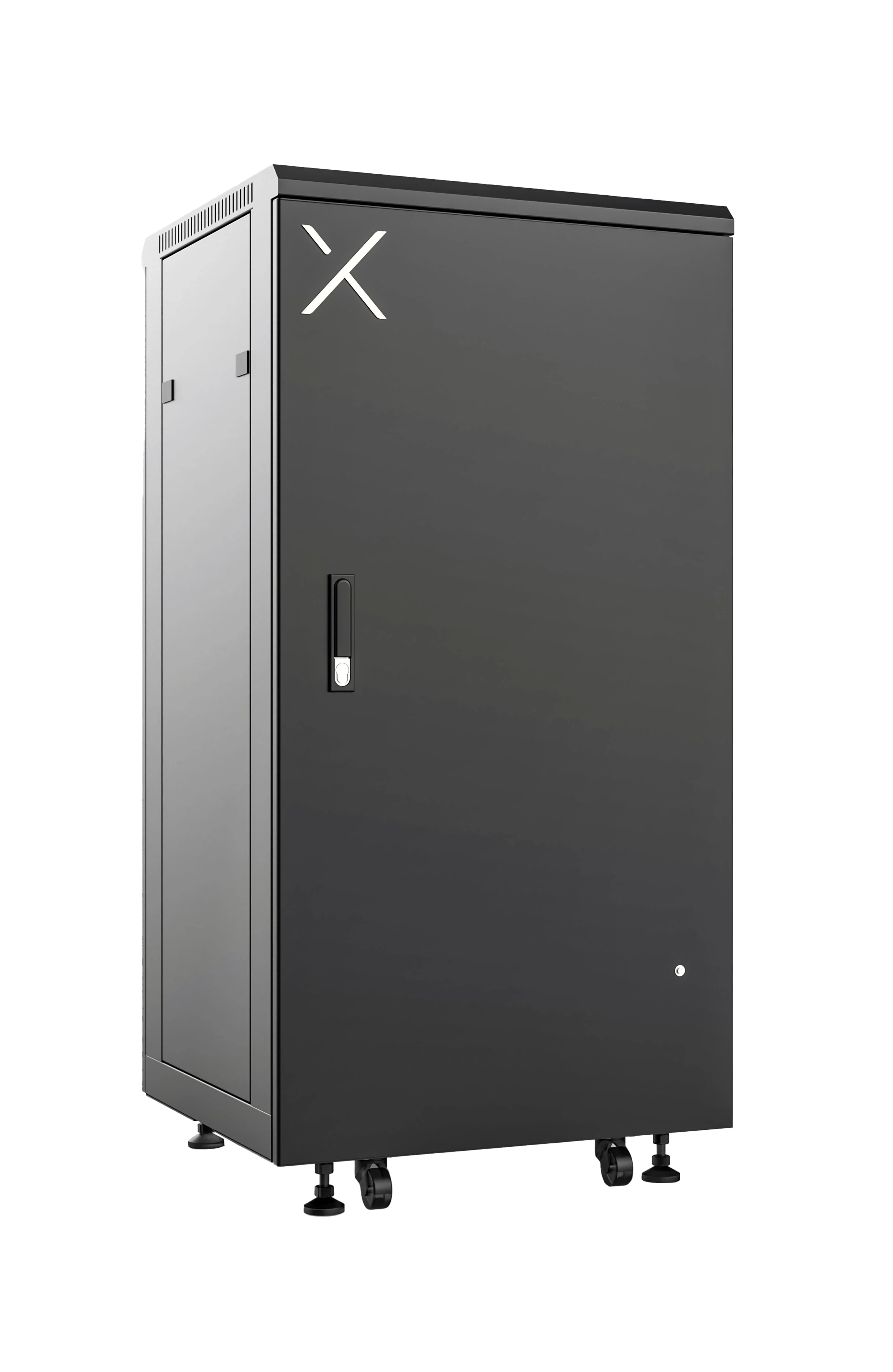

XESS ION Pre-Wired Cabinets

INDOOR (IP20)

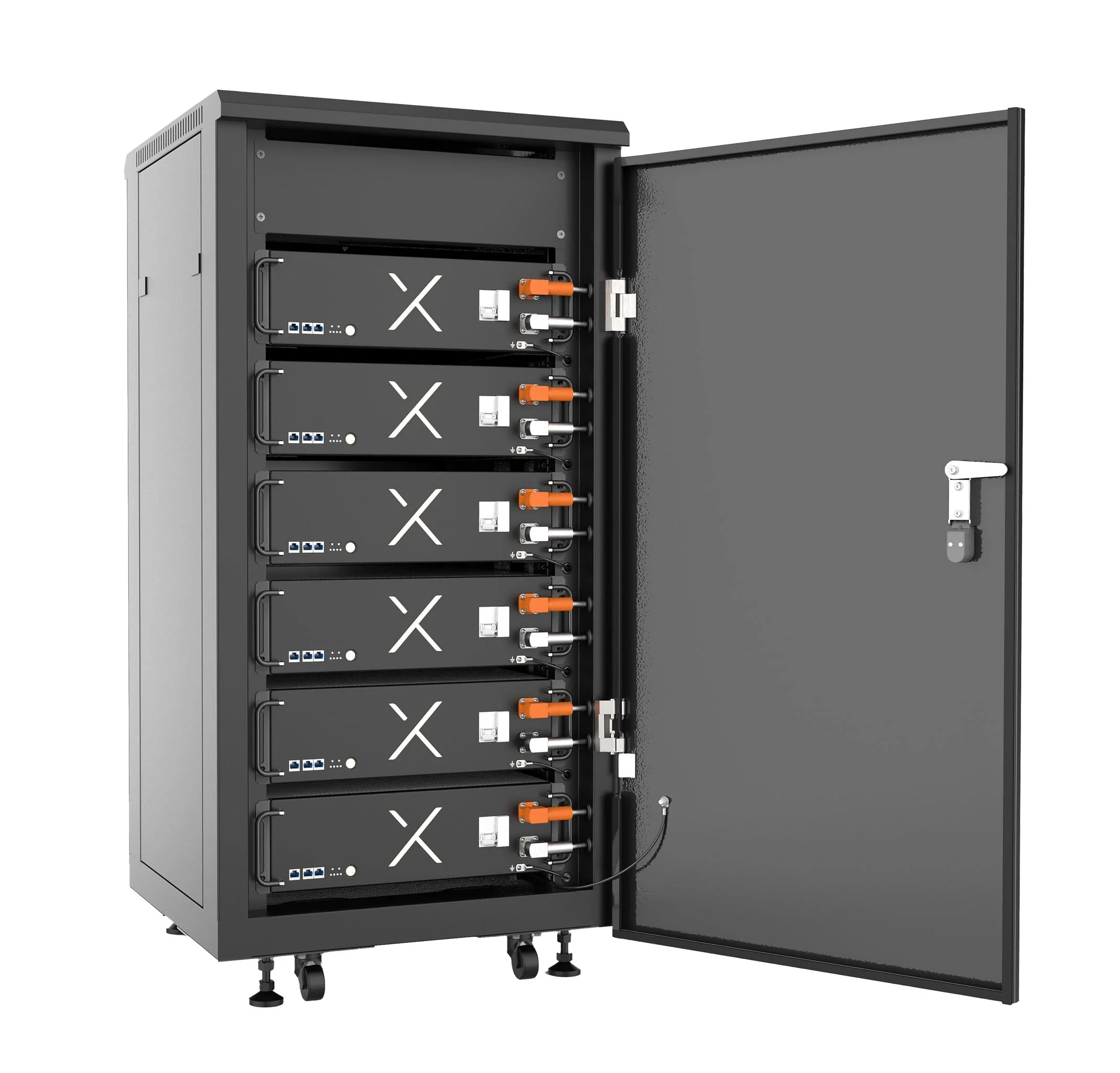

6 Way Cabinet - XESSION-ENCR6
Pre-Wired, Indoor Black, Rackmount 6 Battery, IP20. Ideal for residential and small commercial applications.

Dimensions: 620 × 1270 × 600 mm (W × H × D)
Weight: 91kg
Max Current: 625A
Slots: 6

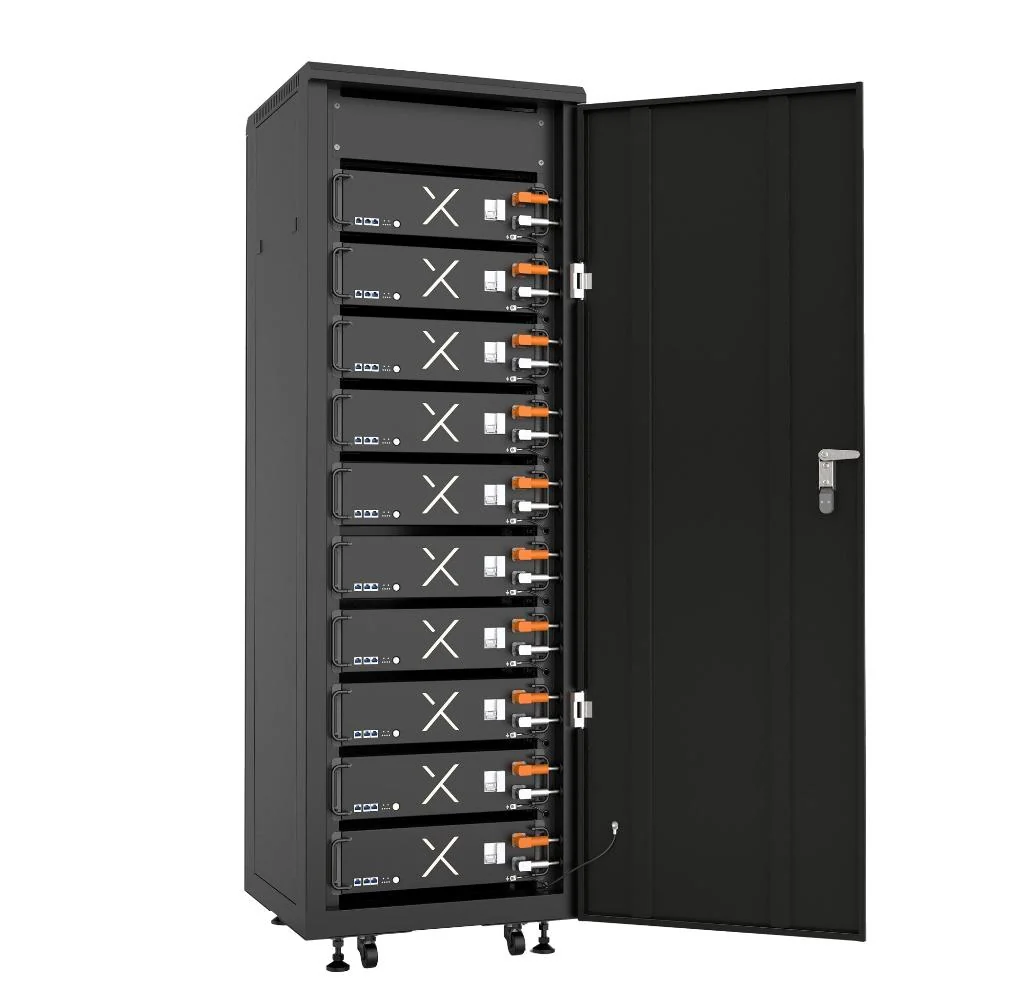

10 Way Cabinet - XESSION-ENCR10
Pre-Wired, Indoor Black, Rackmount 10 Battery, IP20. Perfect for larger energy storage requirements and commercial installations.

Dimensions: 620 × 1890 × 600 mm (W × H × D)
Weight: 128kg
Max Current: 1250A
Slots: 10

OUTDOOR (IP55)

4 Way Slimline Cabinet - XESSION-ENCR4-OUTD
Pre-Wired, Outdoor White, Rackmount 4 Battery, IP55. Slimline style for installations with a limited footprint.

Dimensions: 580 × 1380 × 400 mm (W × H × D)
Weight: 52kg
Max Current: 250A
Slots: 4

6 Way Cabinet  - XESSION-ENCR6-OUTD
Pre-Wired, Outdoor White, Rackmount 6 Battery, IP55. Designed to withstand harsh environmental conditions.

Dimensions: 680 × 1239 × 700 mm (W × H × D)
Weight: 125kg
Max Current: 400A
Slots: 6

10 Way Cabinet - XESSION-ENCR10-OUTD
Pre-Wired, Outdoor White, Rackmount 10 Battery, IP55. Ideal for commercial and industrial applications requiring significant energy storage.

Dimensions: 680 × 1798 × 700 mm (W × H × D)
Weight: 132kg
Max Current: 600A
Slots: 10

Specifications:

Click Here To View AERL LiFe2-5120S Modular Lithium Energy Storage DATASHEET

Manuals:

Click Here To View AERL LiFe2-5120S Modular Lithium Energy Storage MANUAL

Click Here To View AERL LiFe2-5120S Modular Lithium Energy Storage QUICK START GUIDE
