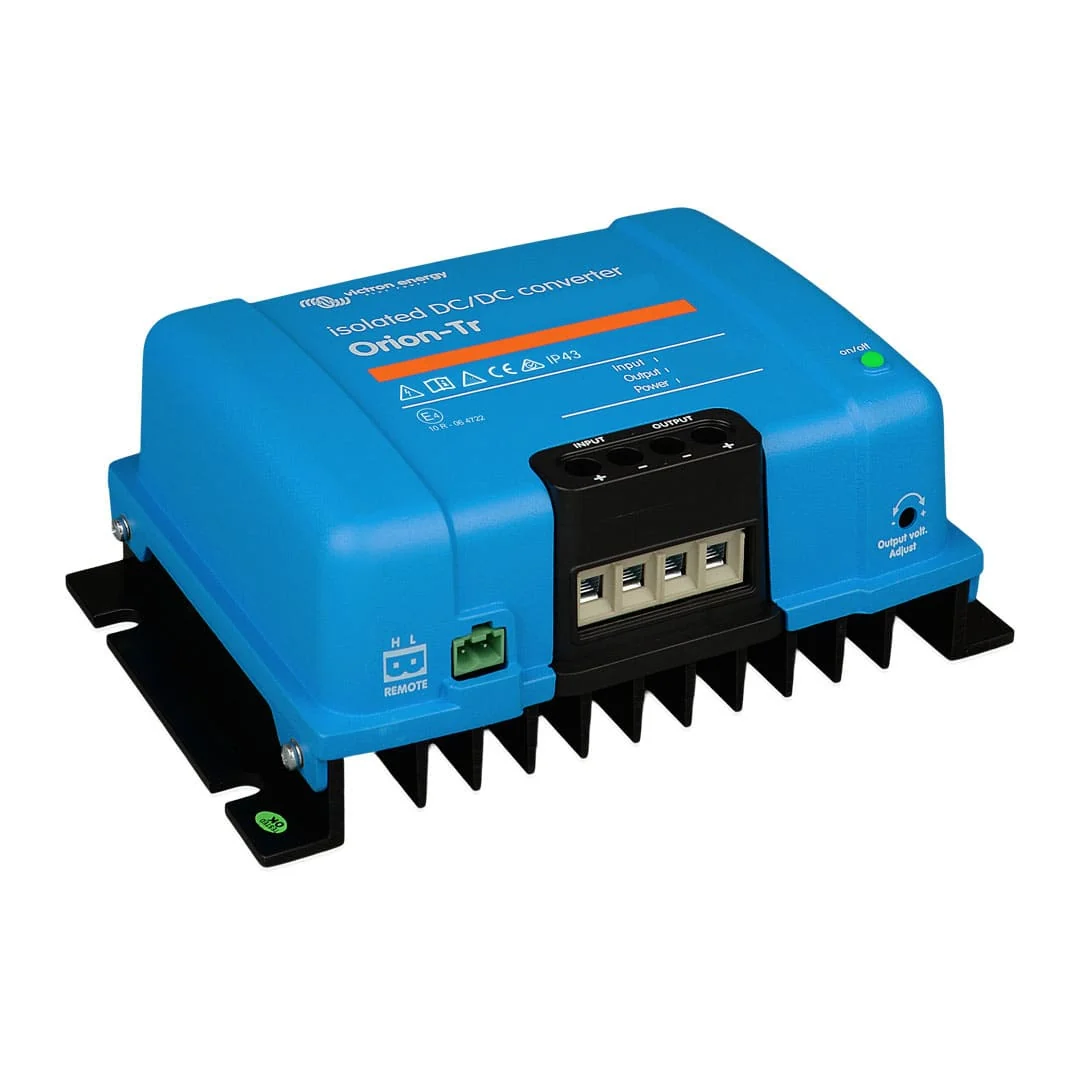

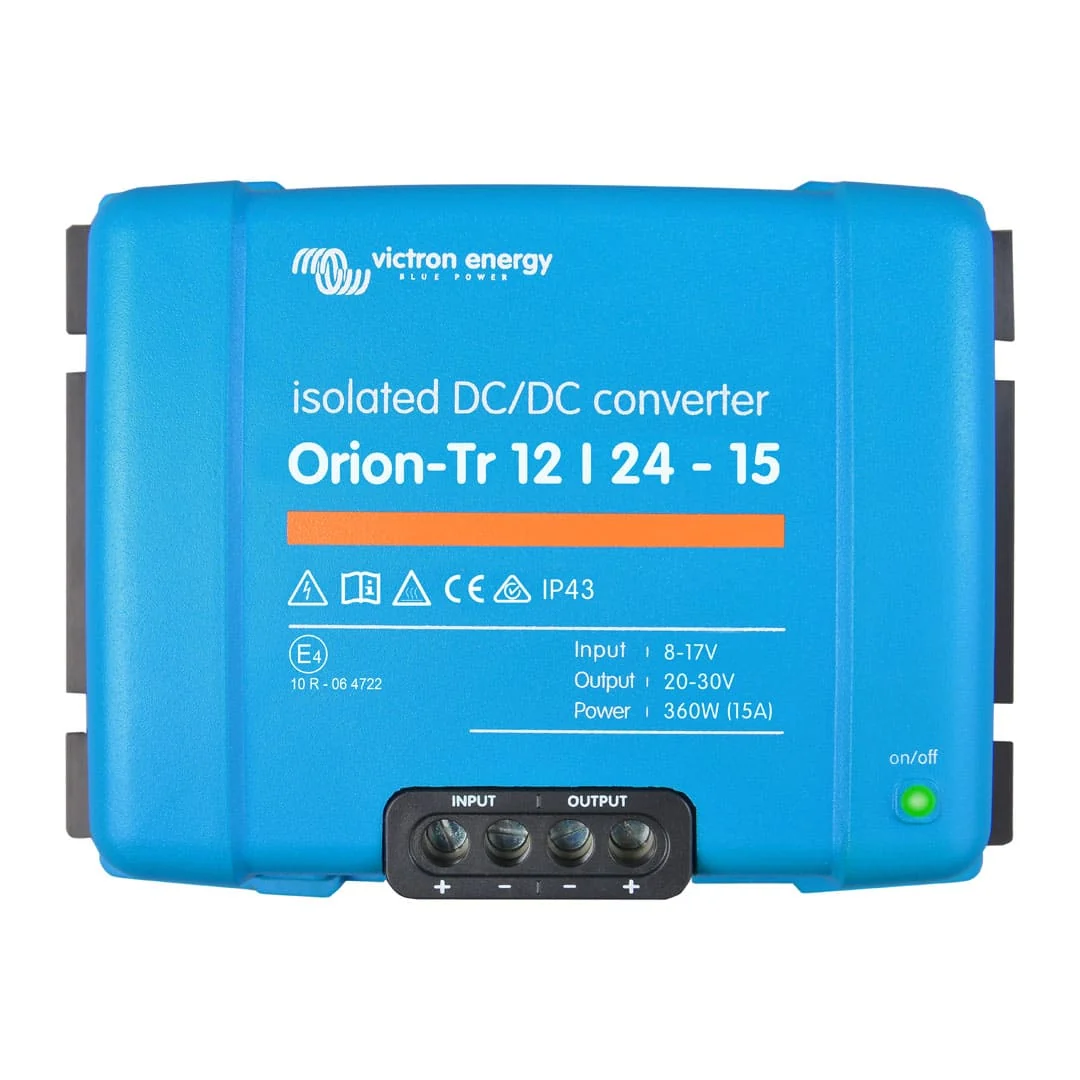

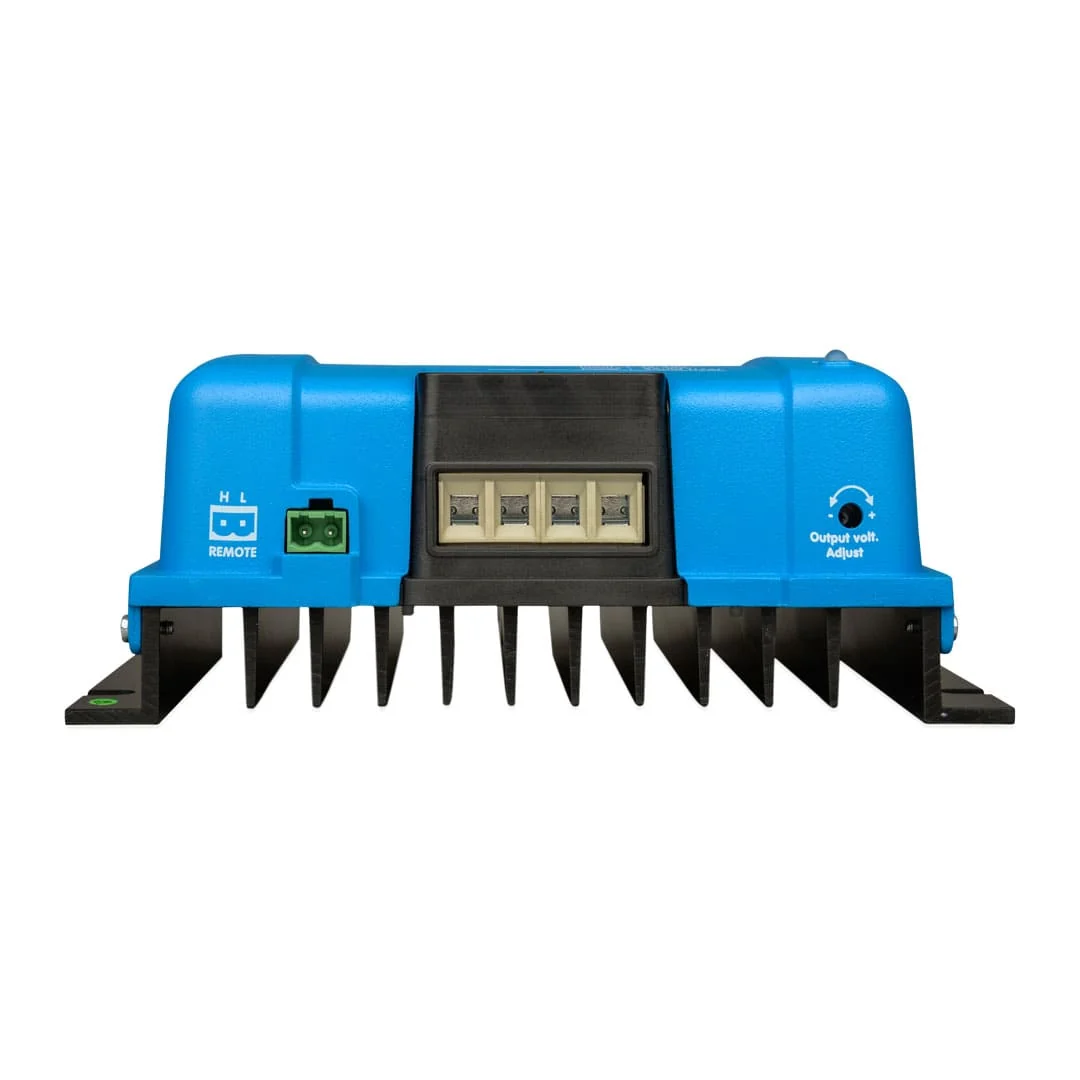

The Victron Orion-Tr 12/24-15A (360W) DC-DC Isolated Converter is the ideal solution for ensuring your system's reliable and efficient power conversion.

Designed to perform under challenging conditions, this Victron DC-DC converter offers robust performance and exceptional versatility, making it perfect for a wide range of applications.

Main Features:

Seamless Integration: The Orion-Tr converter easily integrates into your setup with its screw terminal connections, requiring no special tools for installation.

Enhanced Durability: Built with high-temperature protection, this converter automatically reduces output to prevent overheating, ensuring long-lasting performance even in demanding environments.

Remote Control: Featuring a remote on/off terminal, you can control the converter effortlessly without the need for a high current switch, adding convenience and flexibility to your power management.
Flexible Output Options: With an adjustable output voltage, you can tailor the converter to meet specific power needs, ensuring optimal performance for your devices.

Safety First: Enjoy peace of mind with the IP43 protection rating when installed correctly, safeguarding the device from dust and water ingress.
High Efficiency: The Orion-Tr converter boasts impressive efficiency ratings, reducing energy loss and maximizing power use, all while maintaining stable output under varying input conditions.



Whether you're looking for power-sensitive electronics, automotive applications, or any system requiring isolated power conversion, the Orion-Tr DC-DC Converter delivers dependable performance and superior adaptability. Upgrade your power management system with Orion-Tr and experience the difference in quality and reliability.

Also Available in:

• Orion-Tr 12/12-9 (110 W)

• Orion-Tr 12/24-5 (120 W)
• Orion-Tr 12/12-18 (220 W)

• Orion-Tr 12/24-10 (240 W)

• Orion-Tr 12/12-30 (360 W)


Quick Specs:

• Input Voltage Range: 10-17 V
• Nominal Output Voltage: 24.2 V
• Adjustable Output Voltage Range: 20-30 V
• Continuous Output Current (at 40°C): 15 A
• Maximum Output Current (for 10 seconds): 25 A
• Continuous Output Power (at 25°C): 360 W
• Efficiency: 88%
• Operating Temperature Range: -20 to +55°C (with derating above 40°C)
• Protection: IP43 when installed with terminals facing downwards
• Weight: 1.92 kg (4.23 lbs)
• Dimensions: 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inches)
• Connection Type: Screw terminals
• Galvanic Isolation: 200 VDC between input, output, and case


Specifications

Click Here To View The Victron Orion-Tr 12/24-15A (360W) DC-DC Isolated Converter DATASHEET

Manual

Click Here To View The Victron Orion-Tr 12/24-15A (360W) DC-DC Isolated Converter MANUAL
