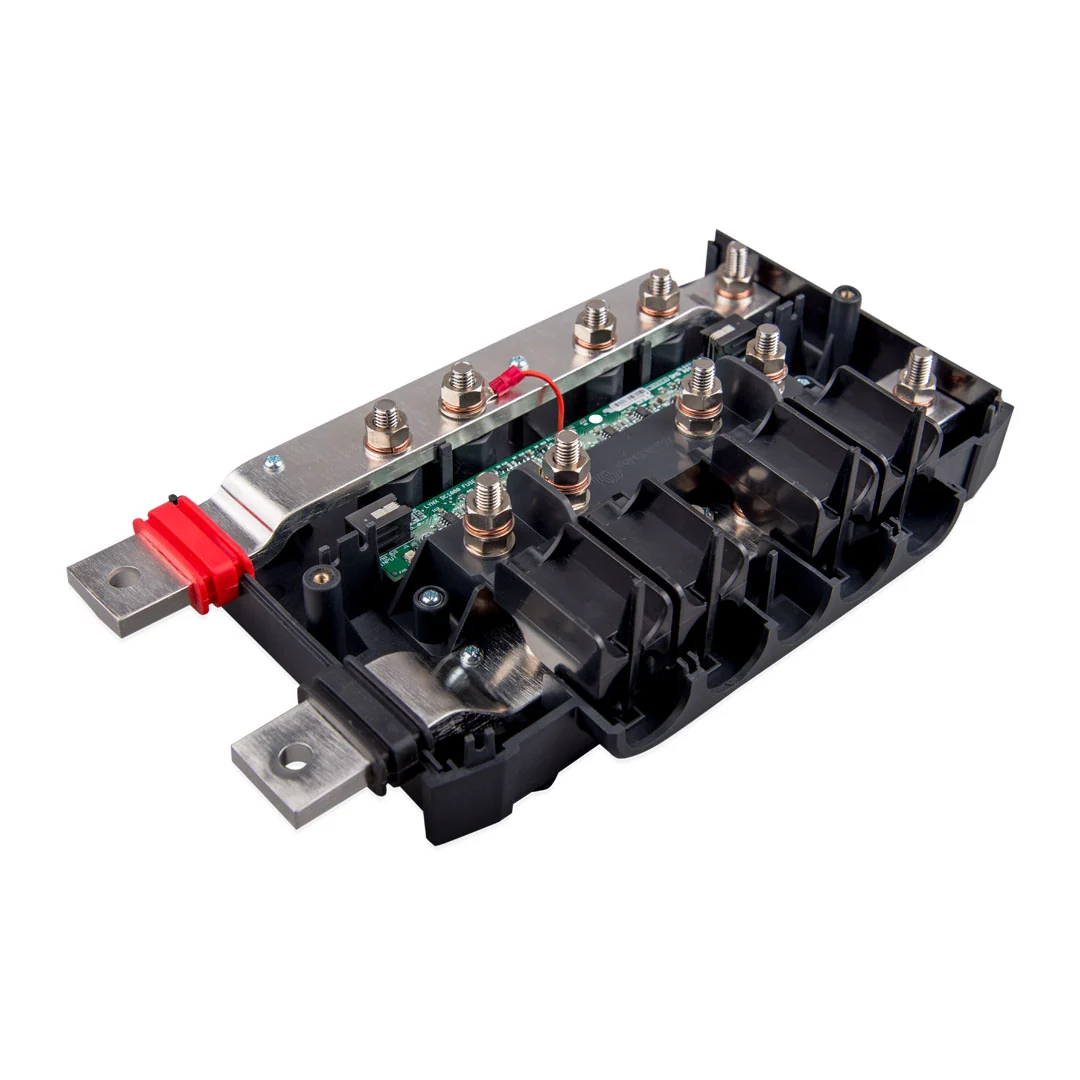

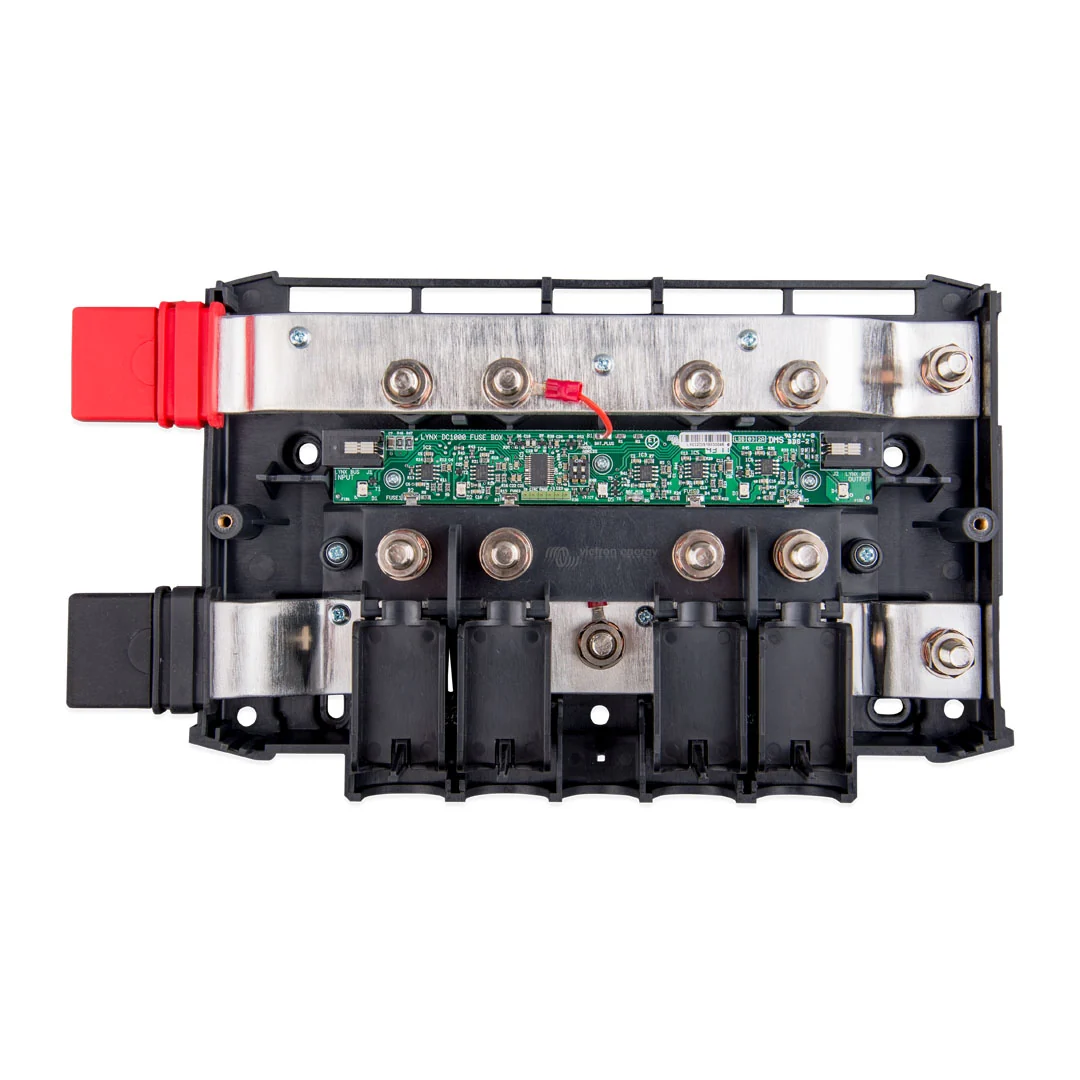

Victron Lynx Distributor is a modular 1000A DC busbar, with locations for four AMG/MEGA DC fuses.

Part of the modular Lynx distribution system, the Victron Lynx Distributor monitors the status of each fuse (fuses sold separately) and indicate its condition with a LED on the front.

Please Note: M8 model is discontinued.

Features:
- Voltage range 9 - 60Vdc
- Supported system voltages 12, 24 or 48V
- Current rating 1000A
- Reverse polarity protection
- Busbar and Fuses M10 studs
- Enclosure material ABS
- Enclosure dimensions (hxwxd) 290 x 170 x 80mm
- Unit weight 2.2 kg
- Busbar material Tinned copper
- Busbar dimensions (hxw) 10 x 30mm
- Operating temperature range -40°C to +60°
- Storage temperature range -40°C to +60°
-Protection class IP22

Manual

Click here for user Manual

Warranty

Click Here To View The Victron Energy Limited Warranty Policy DOCUMENT
