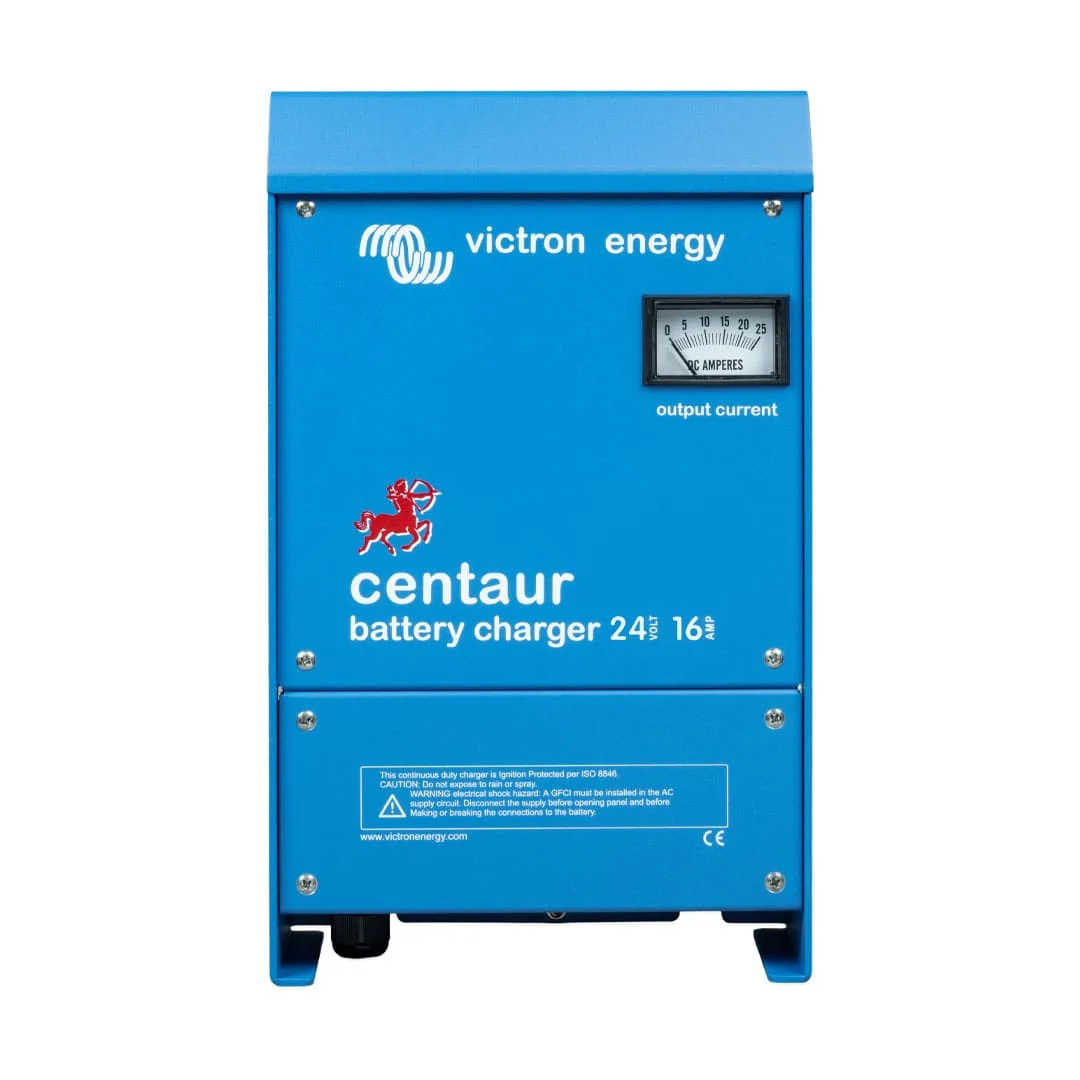

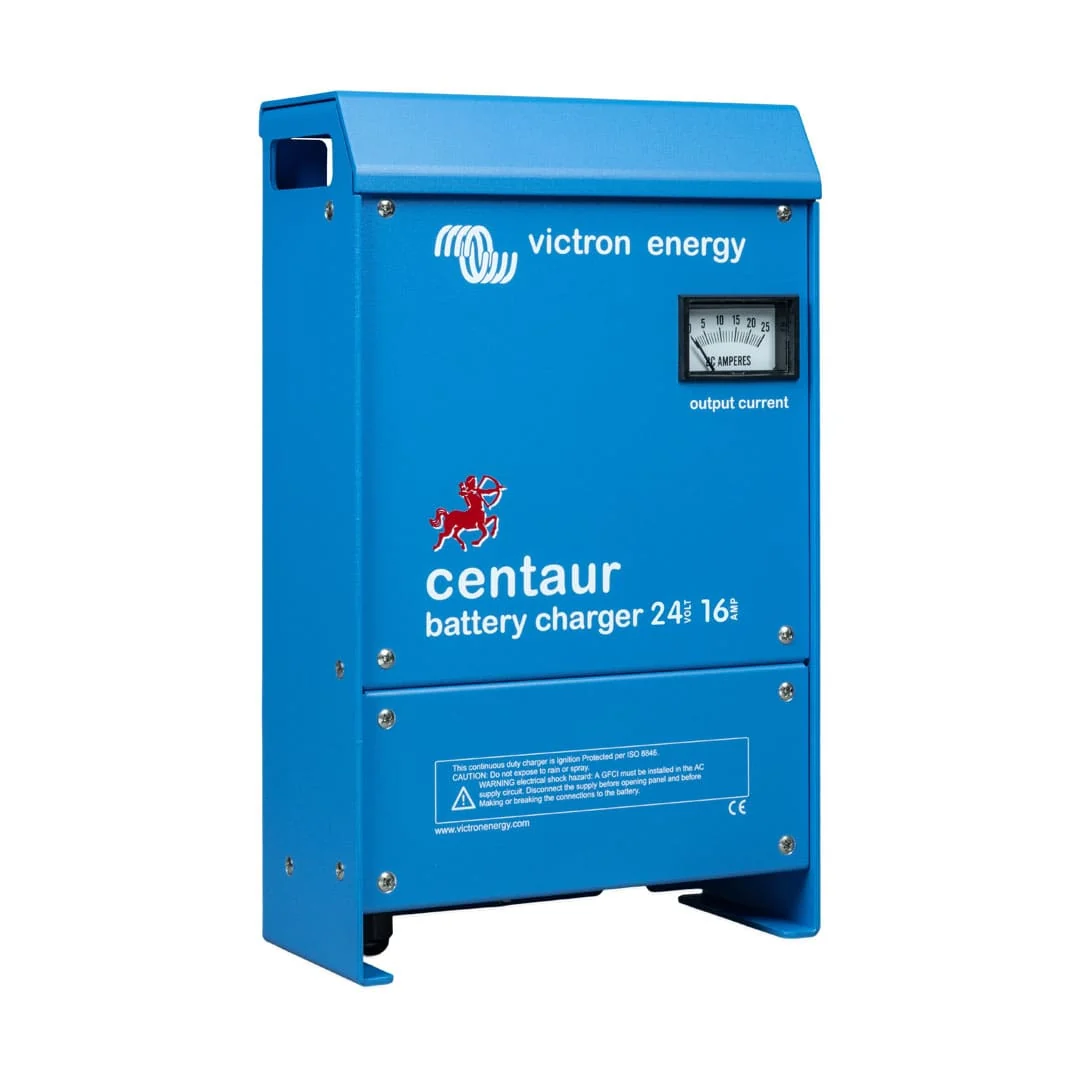

The Centaur Battery Charger 24/16 (3) 120-240V - CCH024016000 is a type of high-quality marine and industrial charger designed by Victron Energy, a company known for producing reliable power solutions. It is typically used in applications where batteries need consistent and reliable charging, such as on boats, RVs, and off-grid systems. The Centaur charger is known for its durability and ability to charge multiple battery banks simultaneously.

Main Features:

Multi-Stage Charging: It provides three-stage charging (bulk, absorption, and float), ensuring that batteries are charged quickly and efficiently while avoiding overcharging.

Multiple Battery Bank Support: Centaur chargers can charge two or three battery banks simultaneously, making them ideal for complex systems like those found on boats or RVs.

Wide Input Voltage Range: These chargers can accept a wide range of AC input voltages (90-265V), making them compatible with various power sources.

Automatic Voltage Adjustment: They can charge both 12V and 24V battery systems, adjusting automatically based on the connected batteries.

Temperature Compensation: The charger adjusts the charge rate based on temperature changes, ensuring optimal performance in varying environmental conditions.

Robust Design: Built to withstand harsh conditions like high humidity, vibration, and extreme temperatures, the Centaur charger is rugged and reliable for industrial and marine environments.

Also Available in:

• Victron Centaur Charger 12/100 (3) 120-240V - CCH012100000

• Victron Centaur Charger 12/20 (3) 120-240V - CCH012020000

• Victron Centaur Charger 12/30 (3) 120-240V - CCH012030000

• Victron Centaur Charger 12/40 (3) 120-240V - CCH012040000

• Victron Centaur Charger 12/50 (3) 120-240V - CCH012050000

• Victron Centaur Charger 12/60 (3) 120-240V - CCH012060000

• Victron Centaur Charger 12/80 (3) 120-240V - CCH012080000

• Victron Centaur Charger 24/30 (3) 120-240V - CCH024030000

• Victron Centaur Charger 24/40 (3) 120-240V - CCH024040000

• Victron Centaur Charger 24/60 (3) 120-240V - CCH024060000

Specifications:

Click Here To View Victron Centaur Charger 24/16 (3) 120-240V DATASHEET

Manual:

Click Here To View Victron Centaur Charger 24/16 (3) 120-240V MANUAL
